The stack usually grows only at the entry to a function, by an increment large enough to hold all the local variables for that function, and, just before the exit from the function, shrinks by the same amount.

The area on the stack devoted to the local variables, parameters, return address, and other temporaries for a function is called the function’s activation record or stackframe.

The manufacturer of a computer often prescribes a “standard” frame layout to be used on that architecture.

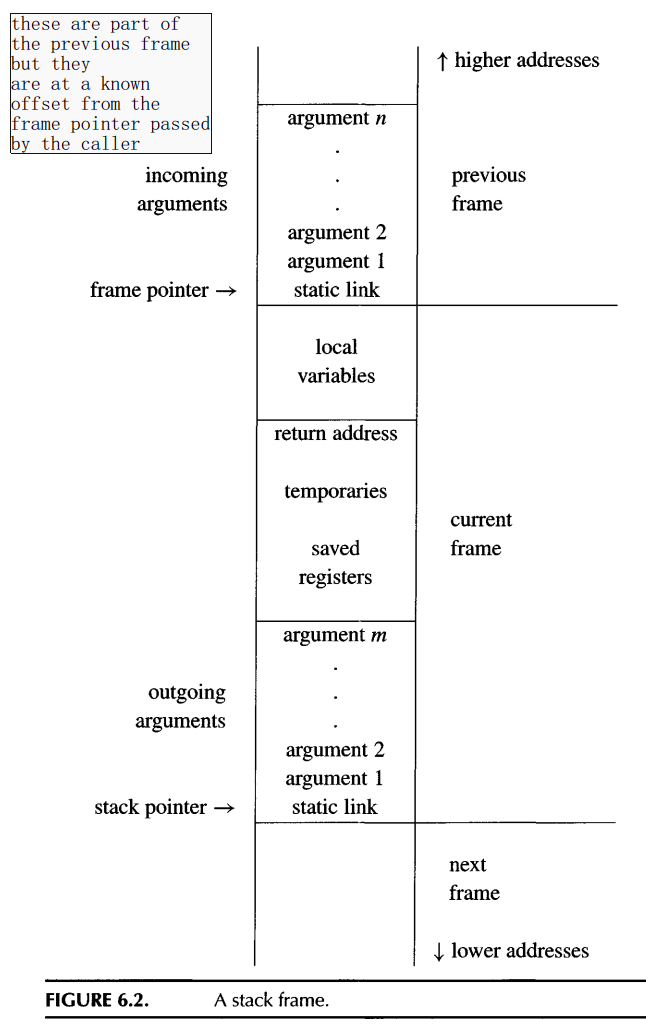

The following is one example of stack frame calling convention:

CPU also have registers which can be used to hold variable when use current stack frame.

A modern procedure-call convention will pass function parameters in registers, pass the return address in a register, and return the function result in a register. Many of the local variables will be allocated to registers, as will the intermediate results of expression evaluation. Values are written to memory (in the stack frame) only when necessary

Here we face the fact that every target machine architecture will have a different standard stack frame layout. If we want Tiger functions to be able to call C functions, we should use the standard layout. But we don’t want the specifics of any particular machine intruding on the implementation of the semantic analysis module of the Tiger compiler.

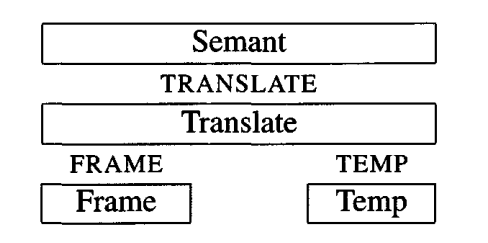

We must use abstraction.

The main.sml parse the source file to produce the abstract syntax tree, and then using findescape to check if there are var needs to escape.

The semant.sml will take abstract syntax tree and do translate, instead of return types, it will return traslated Intermediate Rerpesentation.

The mipsframe.sml is used to record function call and frames needed for local variables. The frame abstrac 2 ways to store variables, one way is to store it in frame if escape, ow store in register (asume we have unlimited registers).
